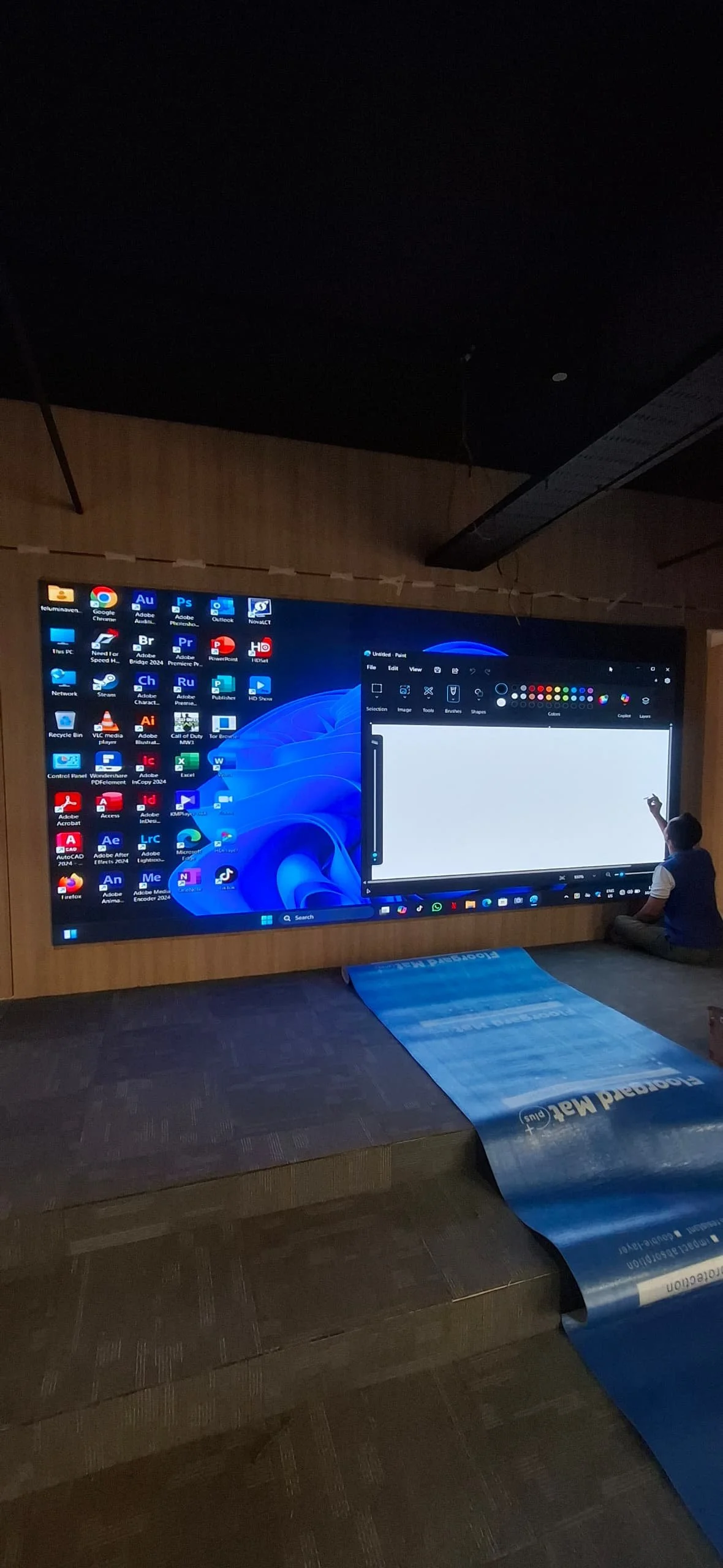

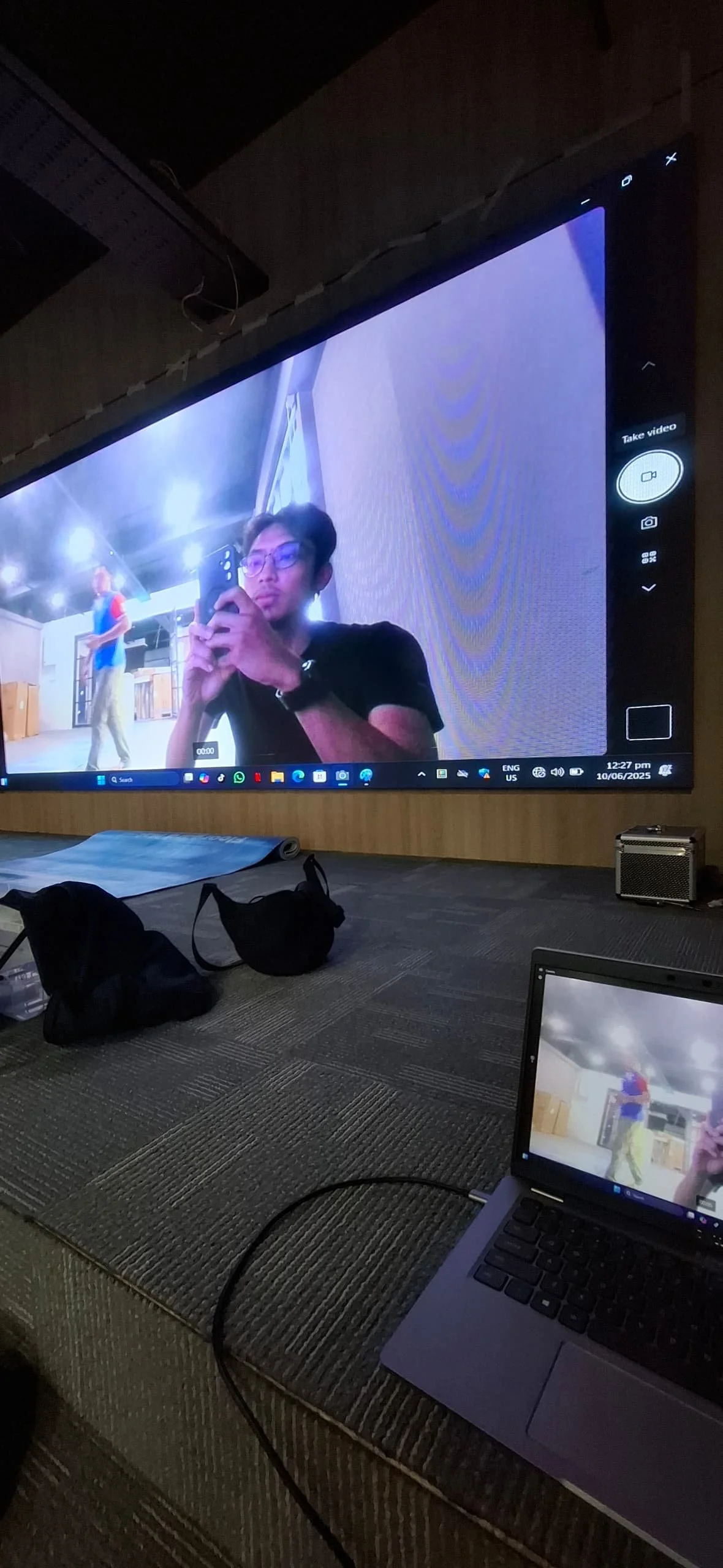

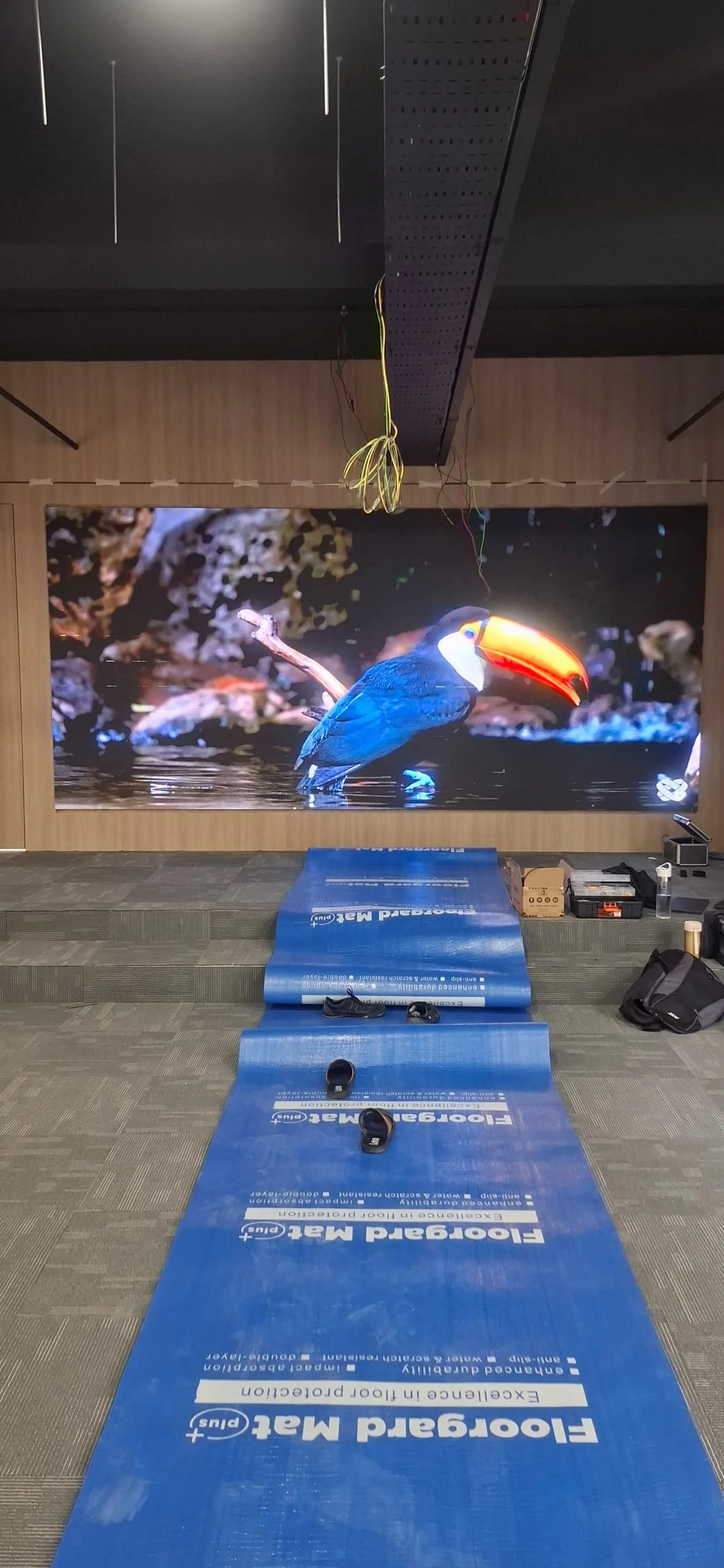

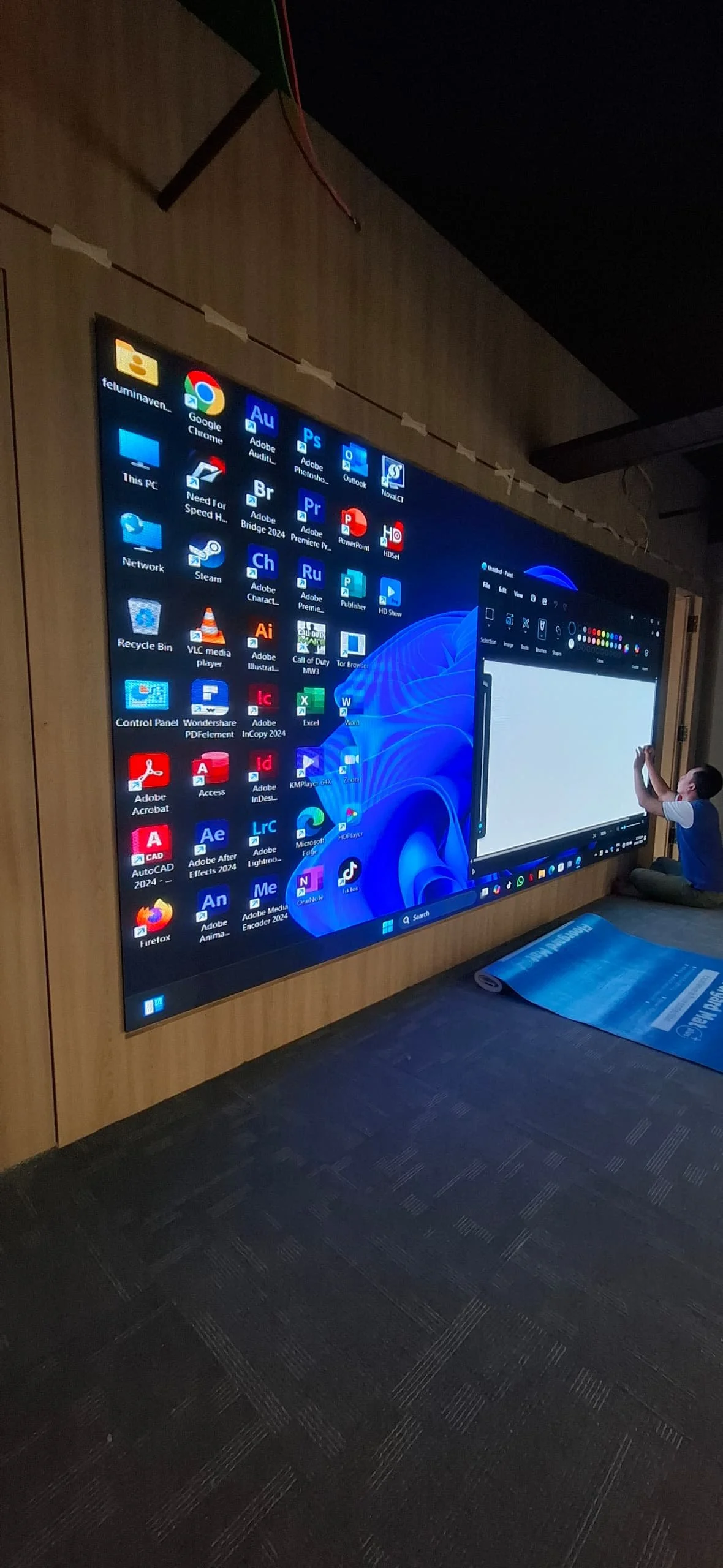

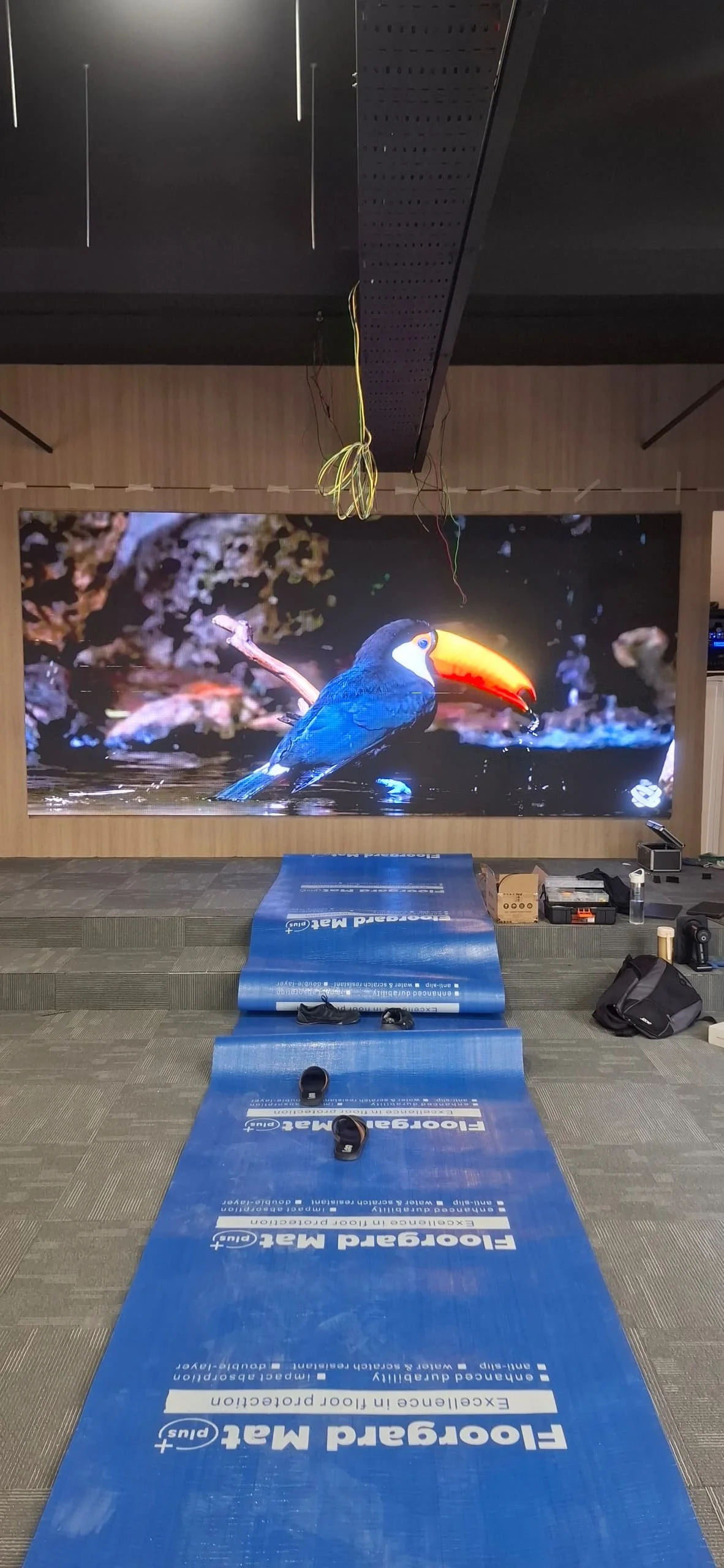

This project deploys a P3.076 LED wall for corporate training, using the same 13 (W) × 12 (H) panel arrangement (assuming standard 320 × 160 mm panels). The overall size remains 4.16 m × 1.92 m with a diagonal of about 180″, delivering a commanding, yet comfortable, presence at the front of the room. With a 3.076 mm pixel pitch, the native resolution is 1352 × 624 px (per panel ≈ 104 × 52 px), and the aspect ratio is ~2.17:1—wider than 16:9. This fine pitch keeps text, spreadsheets, and UI elements crisp at typical training-room seating distances. Recommended viewing range is roughly 3–8 m (sweet spot 4–7 m).
For training workflows, you can center 16:9 content (slides, video, demo screens) and use the side bands for agendas, speaker names, timers, or branded visuals. Set brightness around 600–800 nits for bright indoor environments, and calibrate color temperature to match room lighting for eye comfort during long sessions. Use a controller/scaler that accepts common inputs (e.g., 1080p/4K) and maps cleanly to 1352 × 624 to avoid distortion, with preset layouts for quick switching between slide decks, live demos, and multi-window views. This configuration balances size, clarity, and flexibility—ideal for professional, multi-hour corporate training.
