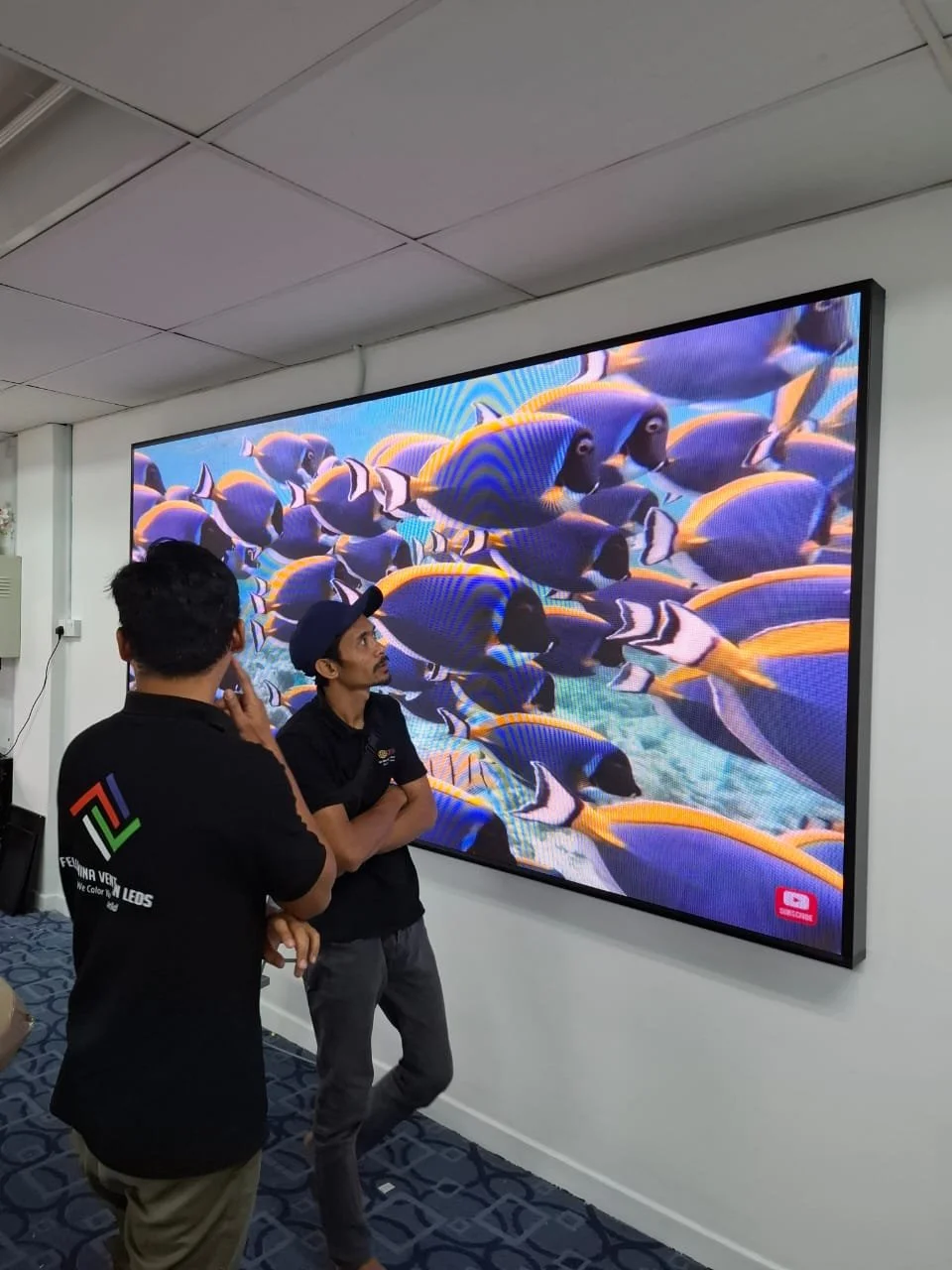

For a 10 panels wide × 9 panels high setup (P2.5 module size 320×160 mm), the overall dimensions are 3200 × 1440 mm (3.20 m × 1.44 m). The actual resolution is 1280 × 576 pixels (2.5 mm/pixel), with a diagonal of about 3509 mm (≈138") and a total screen area of ≈4.61 m². The aspect ratio works out to 20:9 (≈2.22:1), which is wider than the standard 16:9. The ideal viewing distance for P2.5 is ~2–6 m, with the sweet spot at 3–5 m.
In a conference room, this LED screen is well-suited for displaying slides, charts, and videos. Since the aspect ratio is wider than 16:9, standard content will show with pillarboxing (blank space on the sides) if kept in scale. These side areas can be used creatively for logos, titles, running text, or supplemental information. For best results: brightness should be set around 500–800 nits (suitable for bright indoor use), install the screen at eye-level for the center audience, and use a controller that supports 1080p input while mapping cleanly to 1280×576 without distortion.
