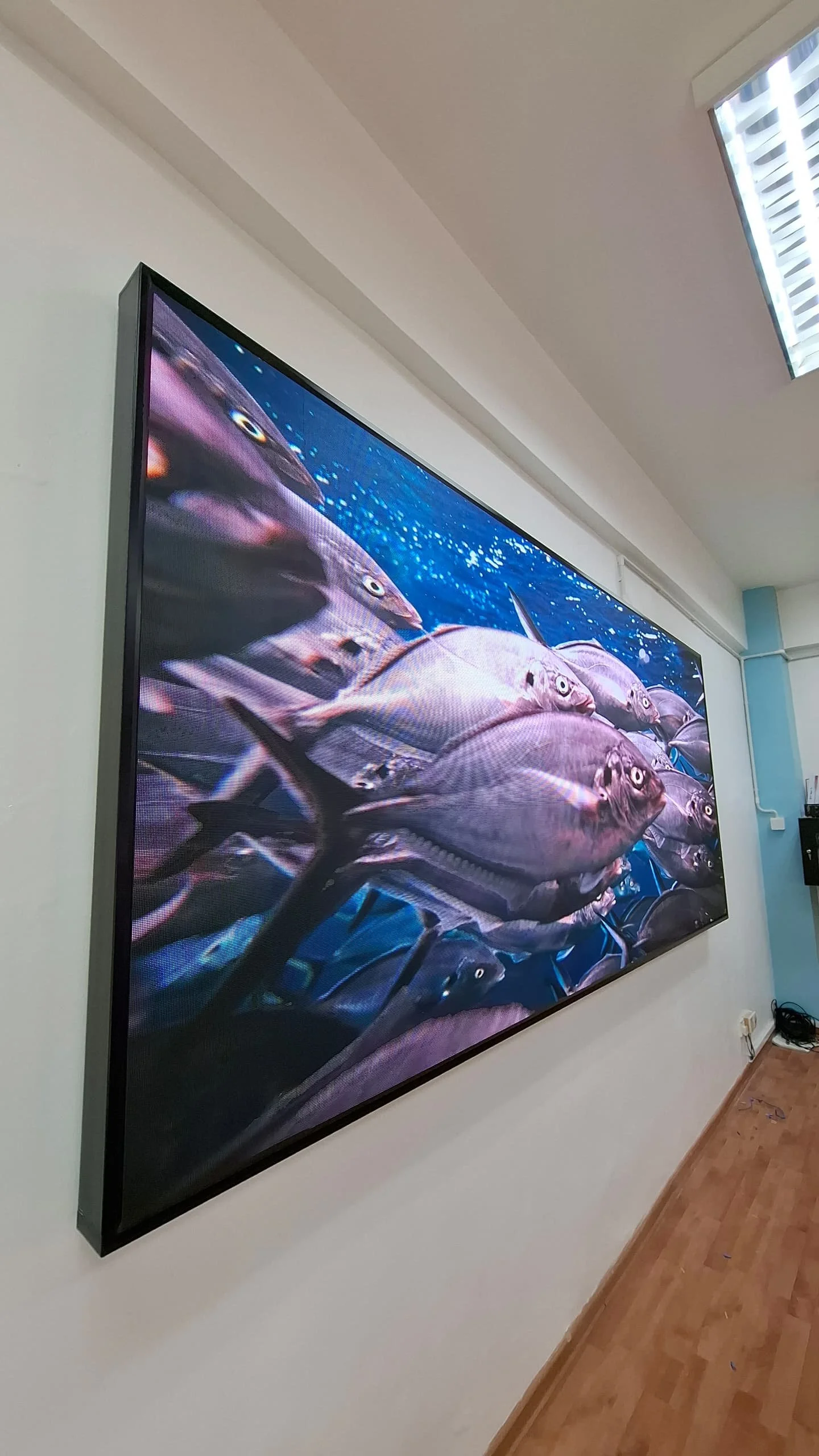

For a P2.5 (320×160 mm modules) arranged 10 panels wide × 9 panels high, the screen measures 3200 mm (W) × 1440 mm (H) (≈ 3.20 m × 1.44 m) with a native resolution of 1280 × 576 pixels. The diagonal is about 3509 mm (≈138"), giving a screen area of ≈4.61 m² and an aspect ratio of 20:9 (≈2.22:1). With a 2.5 mm pixel pitch this wall delivers crisp text and detailed imagery at short-to-medium viewing distances — recommended viewing range for this application is roughly 2–6 m (sweet spot 3–5 m), which suits close-up monitoring and collaborative work in a cyber/operations room.
As a cyber room display, this configuration is excellent for multi-window dashboards, real-time telemetry, security feeds, and slide/video briefings. Center 16:9 video or dashboards and use the extra horizontal space for persistent panels (status tickers, logs, or alerts). Specify a controller/scaler that accepts 1080p/4K and can map inputs cleanly to 1280×576 while supporting low-latency switching and multi-source layouts. Recommend brightness around 600–900 nits for indoor control-room lighting, enable grayscale/gamma tuning for accurate monitoring, and choose front-service or GOB-protected cabinets if the room requires frequent maintenance or higher durability.
